Introduction

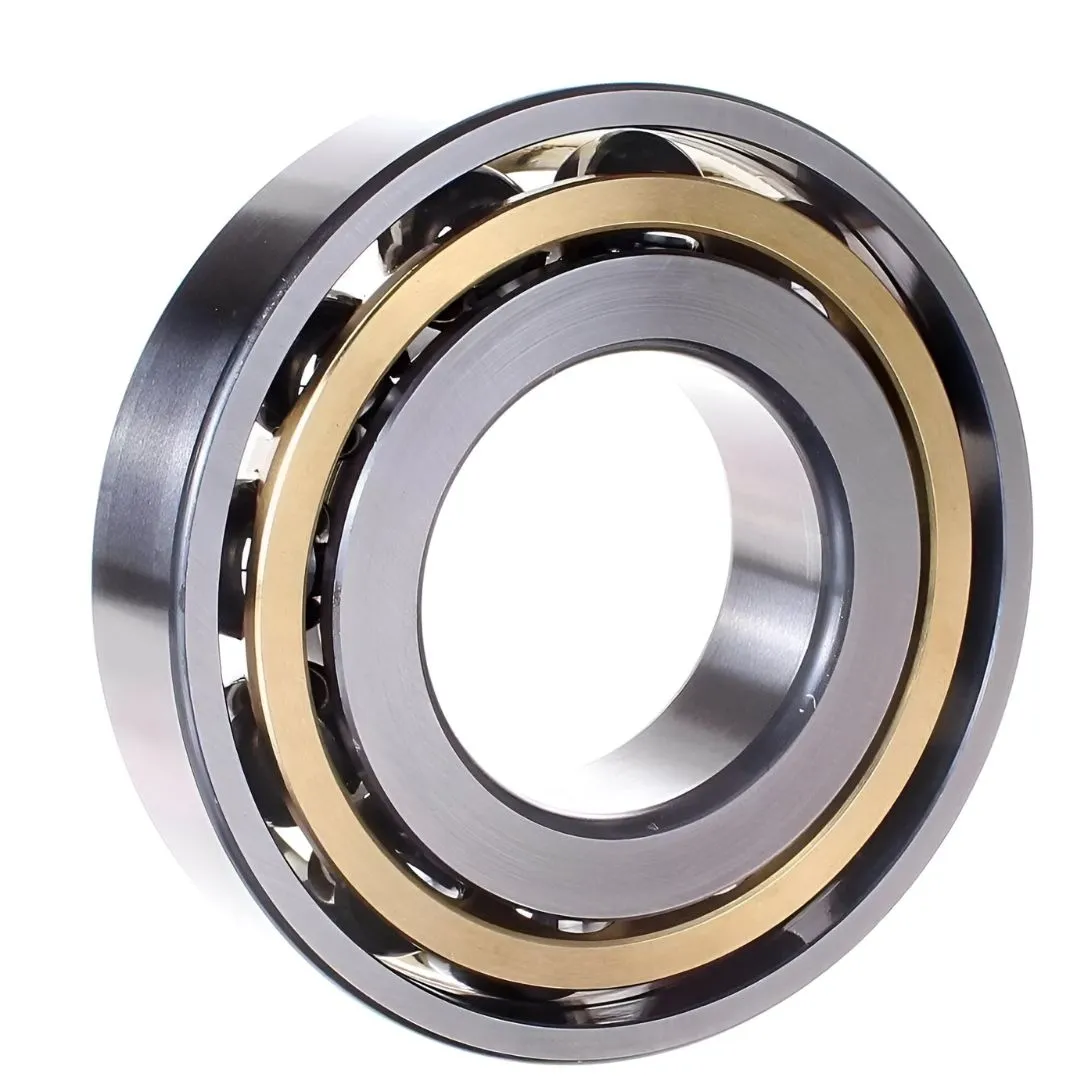

Angular Contact Ball Bearings are specialized bearings designed to support combined loads, i.e., loads acting both radially and axially. These bearings are engineered with raceways in the inner and outer rings that are displaced relative to each other in the direction of the bearing axis. This unique geometry enables them to handle significant axial loads in one direction along with radial loads, making them ideal for high-speed, high-precision applications across multiple industries.

From automotive systems, machine tools, turbines, to pumps and gearboxes, Angular Contact Ball Bearings are a critical component in any system that requires high rigidity, accuracy, and speed.

1. Support for Combined Loads

The primary advantage of angular contact ball bearings lies in their ability to carry combined radial and axial loads simultaneously. Depending on the design, they can handle axial loads in one or both directions, making them highly versatile in dynamic mechanical applications.

2. High-Speed Capability

Angular contact ball bearings are specifically designed for high rotational speeds. The contact angle between the balls and raceways allows the bearing to distribute loads efficiently without generating excessive friction. This feature makes them suitable for spindles, turbines, and high-speed engines, where speed and precision are essential.

3. Precision and Rigidity

Many angular contact bearings are manufactured to tight tolerances, offering superior running accuracy and stiffness. This is particularly important in machine tools and robotics, where misalignment or vibration can lead to performance issues. Their internal design provides greater rigidity, helping to maintain alignment under varying load conditions.

4. Single and Double Row Configurations

These bearings are available in both single-row and double-row configurations:

• Single-Row Angular Contact Bearings: Handle axial load in one direction. Two or more of these bearings are often mounted in pairs to handle bidirectional axial loads.

• Double-Row Angular Contact Bearings: Can support axial loads in both directions and offer compact design with high load capacity, commonly used in pumps, gearboxes, and motors.

5. Adjustable Contact Angle

Angular contact bearings are manufactured with various contact angles, typically 15°, 25°, or 40°. A larger contact angle supports higher axial loads, while a smaller angle favors higher speeds. This flexibility allows designers to optimize bearing selection based on the specific load and speed requirements of their machinery.

6. Sealed or Open Options

Available in both sealed and open versions, angular contact ball bearings can be tailored to different environments:

• Sealed bearings are filled with lubricant and protected from contamination, ideal for maintenance-free operation.

• Open bearings can be re-lubricated and are often used in systems where continuous monitoring and maintenance are possible.

7. Paired Mounting Possibilities

Single-row angular contact bearings are often used in paired arrangements—such as back-to-back (DB), face-to-face (DF), or tandem (DT)—to support axial loads in both directions or to increase stiffness and load capacity. This modular approach provides greater design flexibility and load management.

8. Low Friction and Efficient Operation

The internal geometry of angular contact ball bearings minimizes rolling friction, leading to lower operating temperatures and reduced energy loss. This ensures quiet and efficient performance, especially in high-speed applications.

9. High Load Carrying Capacity

Despite their compact size, angular contact ball bearings offer excellent load capacity, both axially and radially. Their ability to distribute stress uniformly across the contact surface helps reduce wear and extend service life.

10. Durability and Material Strength

Manufactured using high-grade steel or ceramic materials, these bearings provide excellent wear resistance, corrosion resistance, and fatigue life. Some bearings also feature special coatings for added protection in corrosive or high-temperature environments.

Applications

Angular Contact Ball Bearings are widely used in:

• Machine tool spindles

• Electric motors

• Pumps and compressors

• Gearboxes and transmissions

• Automotive steering and wheel assemblies

• Aerospace and robotics

Conclusion

Angular Contact Ball Bearings are a crucial component for any application that demands high precision, speed, and combined load handling. With a unique design that supports axial and radial loads, along with options for customization and paired mounting, they offer unmatched versatility and performance in a compact form factor. Whether you’re building industrial machinery or precision medical equipment, these bearings provide the strength, speed, and reliability your system needs.
